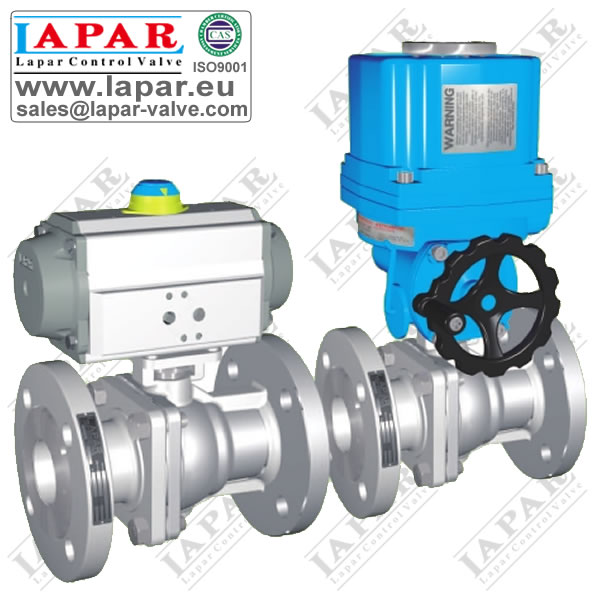

LPA11 Flanged Ball Valve

LPA11 Flanged Ball Valve

Flanged Ball Valve, Flange type Ball Valves

LPA11 Flanged Ball Valve PDF catalogues

Design Feature

  1. Lost-wax precision casting
  2. Fire Safe design approved
  3. Built-in ISO5211 direct mounting pad for easy automation
  4. Anti-static devices for ball-stem-body
  5. Blow-out proof stem
  6. Pressure balance hole in ball slot
  7. TA-LUFT design approved

Parameter

Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 15~250mm
Pressure 1.6~4.0Mpa
Temperature PTFE, TFM: -29~178°C
EK: -29~250°C
BODY, STL: -40~425°C
Connection Flange
Structure 2-piece Type
Body Material SS316L, SS316, SS304, SS304L, WCB, CE3MN
Ball Material SS316L, SS316, SS304L, CE3MN
Sealing Material PTFE, TFM, EK, BODY, STL
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve

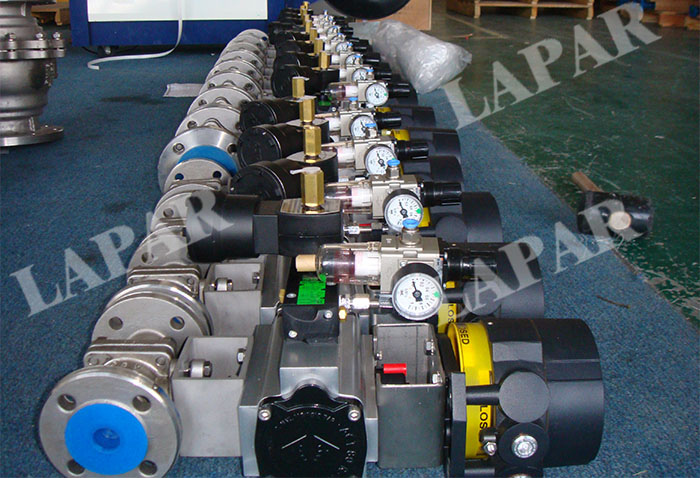

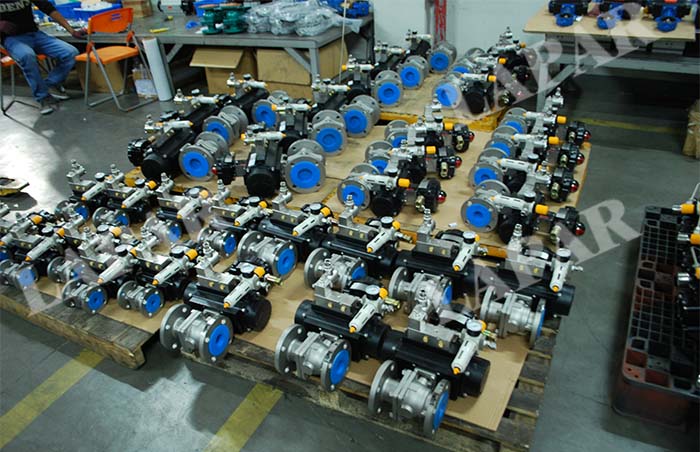

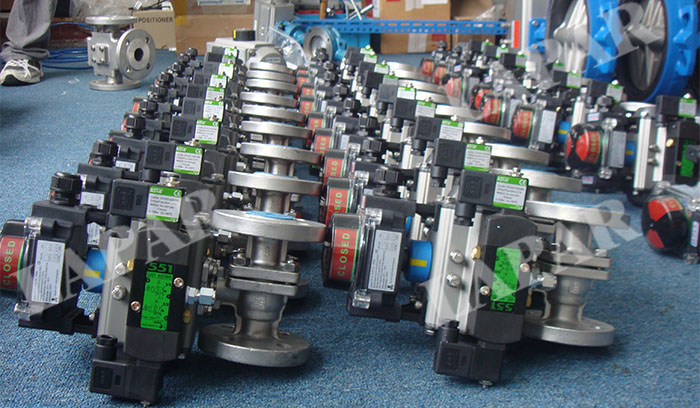

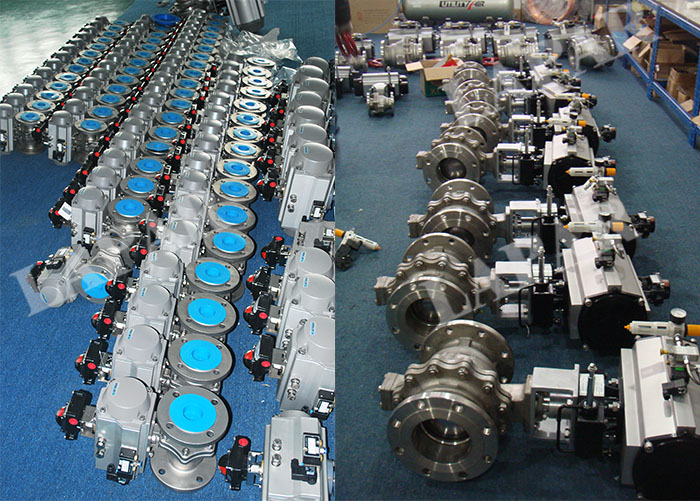

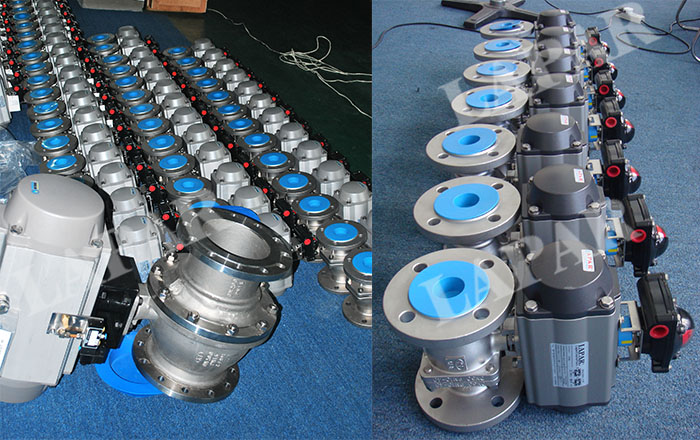

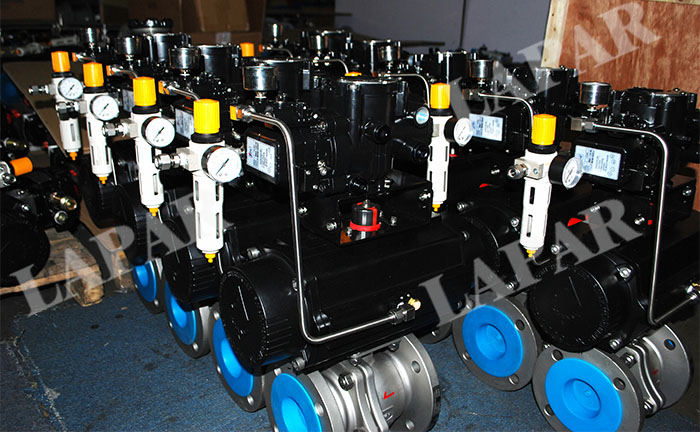

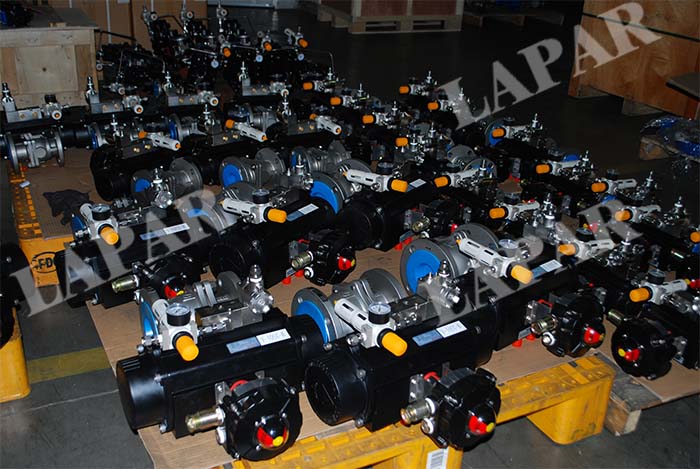

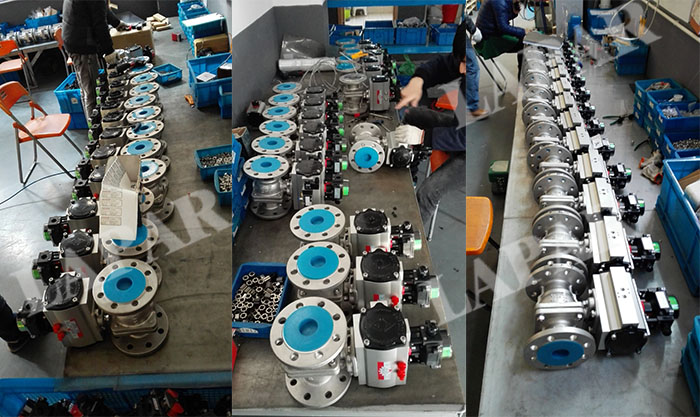

Pneumatic Flange Ball Valves
