LPA17 V Type Ball Valve | Segment ball valve

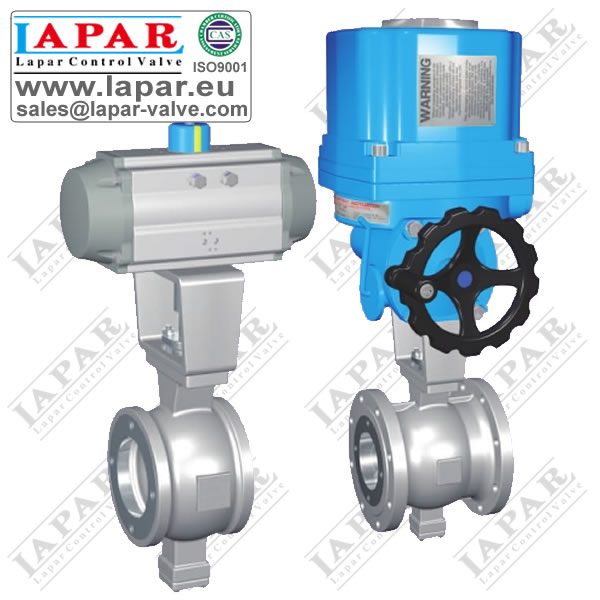

LPA17 Ball Sector Valve

Ball Sector  Valve, V Port Ball Valve, Segment Ball Valves, Ball Control Valves

LPA17 V Type Ball Valve PDF catalogues

Design Feature

  1. For regulating the flow, flow accuracy
  2. For demanding medium with solid material (PTFE seals not applicable)
  3. Briquetting axial seal is active, convenient maintenance sealed
  4. Body compact, affordable
  5. Tungsten carbide seal faces do deal

Standard

  1. Flange: GB/9113.1-2000, JB/T 79.1-1994, HG 20592-1997, ASME B 16.5, EN 1092-1:2001
  2. Pressure & Temperature rating: GB/T 12224-2007, ASME B 16.34-2003, ISO 7005-1
  3. Strength & Density Testing: GB/T 4213-2007
  4. Leakage Class: GB/T 4213-2007 V Class

Parameter

Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 8~100mm
Pressure 1.6~6.3Mpa
Temperature PTFE, TFM1600: -29~178°C
EK: -29~250°C
BODY, STL: -40~425°C
Connection Flange, Wafer
Structure One-piece
Body Material SS316L, SS316, SS304, SS304L, WCB
Ball Material SS316L, SS316, SS304, SS304L
Sealing Material PTFE, TFM1600, EK, BODY, STL
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
