LU Smart Electric Actuators

Economical Electric Actuators

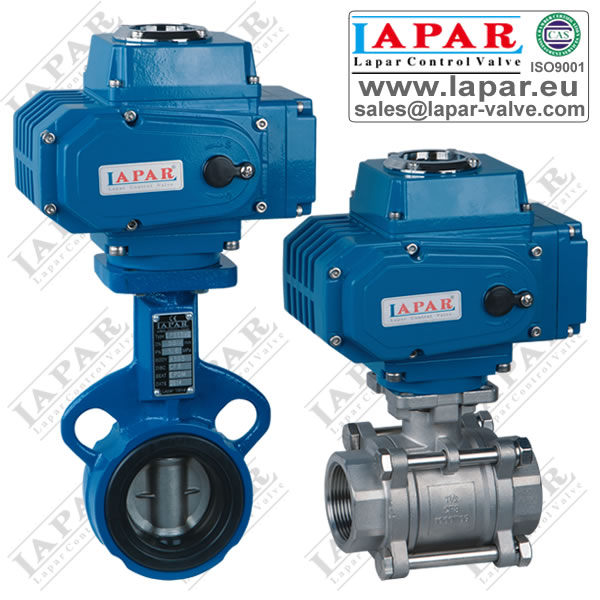

LU Series electric actuator is Lapar company new economical electric actuator for ball valves, butterfly valves and other transition back to driving; appearance of fine small, light weight, precise adjustment is the series features; high technology, reliable performance customers on selected products; variety of specifications to meet customer's various torque valve configuration.
Feature
- Complete function: Customize intelligent, proportional and switch-type valves of various signal output and voltages
- Compact size: Size and weight equal to only 35-40% of congeneric products
- High standard protection: Protection standard of IP67 for outdoor operation
- Reliable performance: Lengthen service life of easily damaged parts such as bearing and electrical components
- Precise and wear resistant: Turbine output shaft is forged by integrated special copper alloy, high in strength and great in wear resistance Little
- Return difference: Integrated turbine output shaft avoids clearance of key joint and ensures precision
- Safety assurance: Grade F insulation motor passed high-voltage insulation test assures safety
- Integrated: Valve body carries intelligent control module, no need of external connection with other accessories
- Simple mating: Adopted single-phase source simplifies circuit external connection
- Convenient to use: Installation at any angle, no need of secondary maintenance
- Protective device: Double limit with over temperature protection
- Optional speed: 5S, 10S, 15S, 30S, 60S
- Optional explosion-proof type: Explosion series: Ex d IIB T4
Parameter
Size | Torque | Weight | Voltage | Travel time | Motor power | Rated current | Protection standard |
5 | 50Nm | 2.4kg | DC24V AC110V AC220V AC380V | 10S 30S | 20W 10W | 2.00A 0.48A 0.24A 0.15A | IP67 |
10 | 100Nm | 4.2kg | DC24V AC110V AC220V AC380V | 10S 30S | 40W 23W | 2.40A 0.64A 0.32A 0.19A | IP67 |
20 | 200Nm | 7.2kg | DC24V AC110V AC220V AC380V | 10S 30S | 40W | 8.00A 0.90A 0.48A 0.25A | IP67 |
40 | 400Nm | 7.2kg | DC24V AC110V AC220V AC380V | 10S 30S | 90W | 7.00A 2.00A 0.92A 0.45A | IP67 |
60 | 600Nm | 8.0kg | DC24V AC110V AC220V AC380V | 10S 30S | 90W | 7.00A 2.00A 0.92A 0.45A | IP67 |
100 | 1000Nm | 11.5kg | AC110V AC220V AC380V | 50S | 100W | 2.20A 1.20A 0.48A | IP67 |
200 | 2000Nm | 12.1kg | AC110V AC220V AC380V | 100S | 100W | 2.20A 1.20A 0.48A | IP67 |
