LPH25 High-pressure Low-noise Cage Guided Control Valve

LPH25 High-pressure Low-noise Cage Guided Control Valve

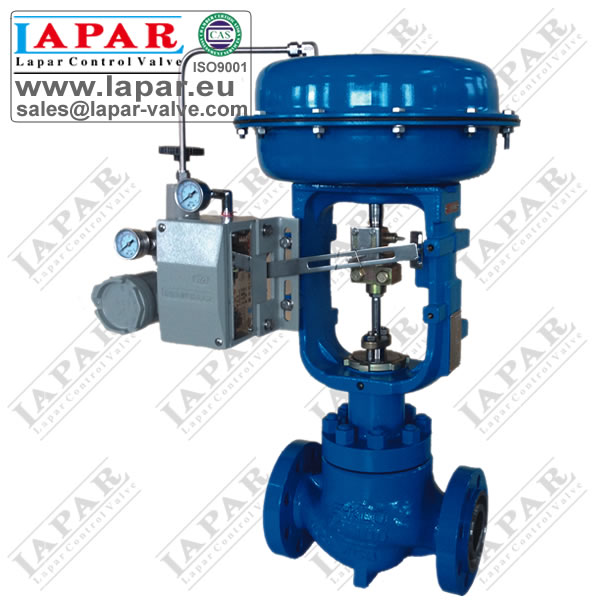

LPH25 High-pressure Low-noise Cage Guided Control Valve with Pneumatic or Electric Actuator

High-pressure Low-noise Cage Guided Control Valve PDF catalogues

LPH25 high-pressure low-noise cage guided control valve is designed for reducing the noise. In order to adapt to the throttling proliferation and expansion of the gases,it has many symmetry holes on the sleeve to reduce the pressure drop. The compact valve body, having a S-shape flow passage that features low pressure loss and a stabilizer that regulates turbulent flow around the cage, allows a large flow capacity, rangeability,and high accuracy flow characteristics.The actuator integrated with simplest mechanisms utilizes a compact yet powerful diaphragm actuator loaded with multiple springs.

LPH25 valves are widely applicable for reliable control of high temperature, high pressure process lines.

Size DN40~200 (1.5~8 inch)
Pressure Rating ANSI CL900~2500, JIS 63K
End Connection RF, RJ, SW, BW
Bonnet Plain or Extension
Flow Characteristics Equal percentage, Linear
Actuator Pneumatic, Electric
