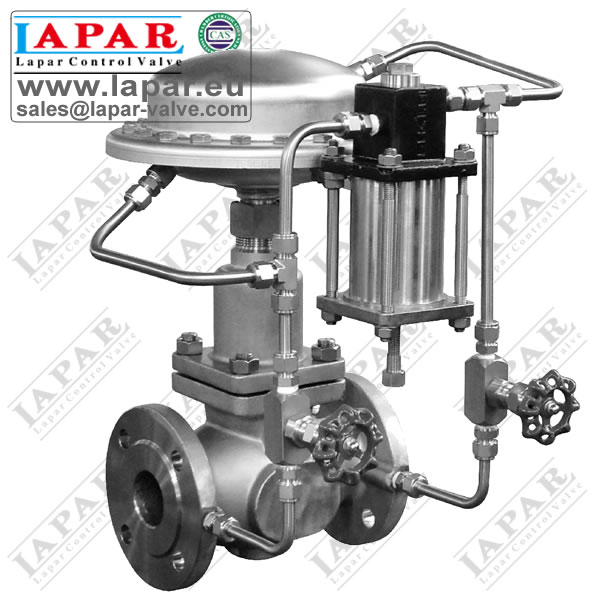

Pilot-operated Control Valve, Pressure Control Valve (PCV)
Feature
The pilot-operated pressure control valve is composed of control valve, pilot and actuator, it is suitable for controlling differential pressure in the pipes of non-corrosive liquids, gases and steams, when the differential pressure rises, the control valves is closed.
The main features are as follows:
- It has pressure balancing function whit high sensitivity.
- Low noise, reliable performance, free of maintenance.
- The standard modular design is adopted
- Various combined controls can be carried out through the assemblies.
Parameter
| Actuator | Pilot-operated Diaphragm Actuator |
| Control | Pilot-operated |
| DN | 15~250mm |
| Pressure | PN1.6~6.4Mpa, ANI150~600Lbs, JIS10~40K |
| Temperature | -29~350°C |
| Flow characteristics | EQ%, Linear, Quick opening |
| Regulation accuracy | +/-4% |
| Leakage class | Metal Sealing: IV grade Soft Sealing: VI grade |
| Connection | Flange |
| Structure | Standard Type, Low temperature Bellows Seal Type, Cooling Type |
| Body & Cap Material | WCB, WCC, WC6, CF8, CF8M, CF3M |
| Stem Material | 304, 316, 316L 17~4PH |
| Spool Material | 304, 316, 316L, 17~4H, Surfacing Stellite |
| Packing Material | PTFE, RTFE, Flexible graphite |
| Medium | Gas, Liquid, Steam and etc |
| Option | Cooling Tank, Heat Sink, Extension, Travel Indicator |
| Remark | Commissioning has been completed in the factory |
