Inlet vane dampers provide pre-spin of the air into the fan, starting the fan while the damper is in the closed position allows for a low power startup, it suitable for applications requiring both fan shutoff and volume control. Inlet Vane dampers exploit the properties of fans by affecting the rotation of the air entering the fan to reduce fan pressure without degrading the speed.

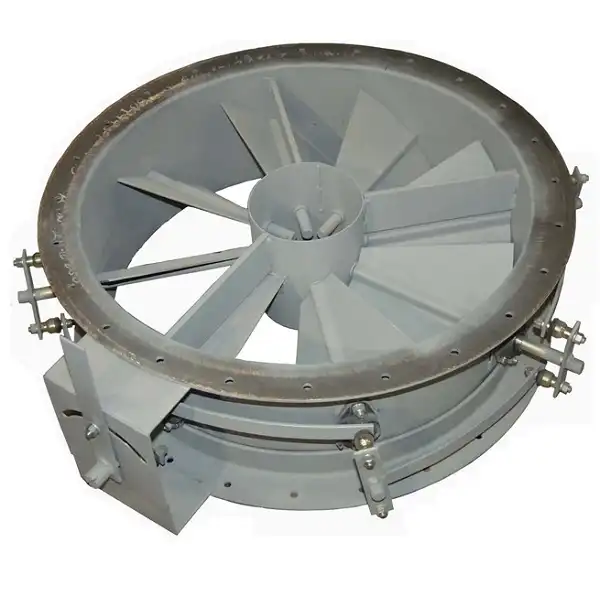

Name: Inlet Vane Control IVC Damper

Size: DN300 ~ DN1600

Pressure: 0.01Kpa(G)~10Kpa(G)

Temperature: Up to 110℃

Leakage:
– 1%~5% for metal sealing

Material:
– Body: Cast Steel, Stainless steel, Alloy Steel and etc.
– Disc: Cast Steel, Stainless steel, Alloy Steel and etc.
– Seat: Metal

End Type: Flange

Actuator:
– Pneumatic Actuator
– Electric Actuator
– Manual

Function: On-off, Modulating

Medium: Gas, Flue Gas, Dusty Gas, Corrosive Gas
