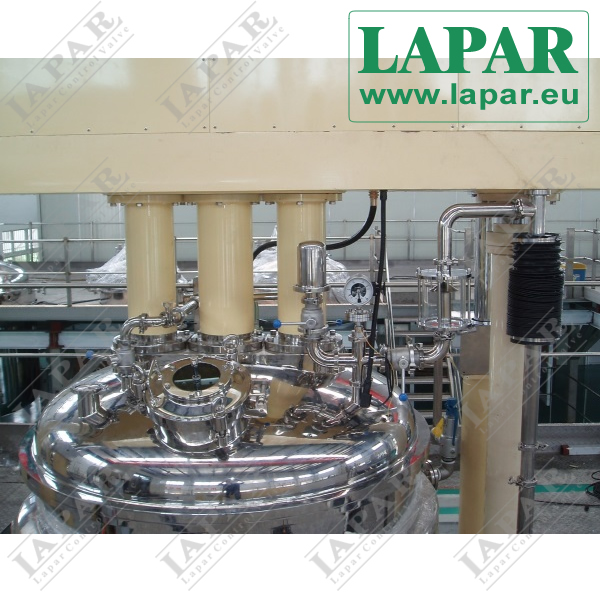

Multitasking Mixer
Features
- Widely used in emulsification, dispersion process, dissolution, heat exchange, kneading of the high-viscosity media process.
- Using anchor stirrer transfer of the high viscosity medium to high speed operating range of a stirring blade, conducive to mixing, kneading, heat transfer operations.
- According to media selection paddle match.
- Can be designed for the mixing, kneading in a vacuum reduced pressure state, such as boiling temperature, deaeration, the degree of dehydration.
- Can handle up to a viscosity of about 500PaS (500,000 CP) media.
Applications
- Chemicals industry: Fillers, Bonding agents, Aqueous dispersions of Polyethylene Wax, Iron Mould Release agents, Pesticides, Paint and ink, Waterproofing agents, etc.
- Coating industry: Copier toner, UV curing paint, printing ink and etc.
- Pharmaceuticals: Plaster, Ointments, Sugar coating liquid, etc.
- Cosmetics industry: Foundation, beauty mask, plastic mask, etc.
- Food industry: Bread paste, butter, cream, salad dressing, juice, etc.
- Paper industry: coating agent.
- Electronics Materials Industry: magnetic materials.
- Electrical Materials Industry: printed circuit board, the phosphor reuse, ceramic materials, etc.
- Energy Sector: nickel-cadmium batteries.
- Resin Industry: Polyurethane resin, Sealing agent, tackifying resin of chloride, chloroprene rubber, etc.
Standard Parameters
Can be designed for explosion-proof, according to the use and treatment, electrical power may be done accordingly.
| Model | Capacity (L) | Motor Power (KW) | ||
| Anchored | Homogenous | Dispersed | ||
| MT-3S-5 | 3~5 | 0.2 | 0.4 | 0.4 |
| MT-3S-20 | 10~20 | 0.75 | 0.75 | 0.75 |
| MT-3S-50 | 25~50 | 0.75 | 1.5 | 1.5 |
| MT-3S-100 | 50~100 | 1.5 | 2.2 | 2.2 |
| MT-3S-300 | 150~300 | 2.2 | 4.0 | 5.5 |
| MT-3S-500 | 200~500 | 2.2 | 5.5 | 7.5 |
| MT-3S-1000 | 350~1000 | 5.5 | 11 | 15 |
| MT-3S-1500 | 500~1500 | 7.5 | 15 | 15 |
| MT-3S-2000 | 700~2000 | 7.5 | 22 | 22 |
| MT-3S-3000 | 1000~3000 | 11 | 22 | 30 |
