Plastic Valves

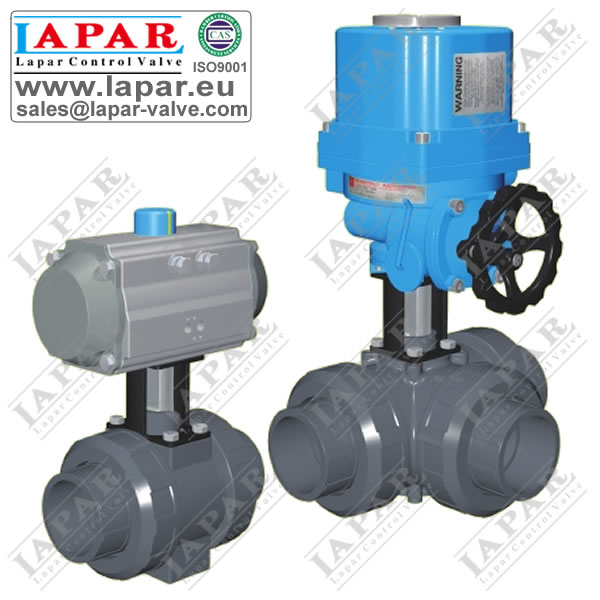

LPD11 Plastic Ball Valve

LPD11 Plastic Ball Valve

UPVC Ball Valves, CPVC Ball Valves, PP Ball Valves

LPD11 Plastic Ball Valve PDF catalogues

Design Feature

  1. Body & Ball: UPVC, CPVC, PP
  2. Seat:PTFE
  3. Union, Thread or Flange type
  4. Food chemical solvent
  5. Light weight, small size
  6. Corrosion resistance strong, wide range of applications
  7. Material health, non-toxic
  8. Easy maintenance and replacement

Parameter

Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 15~100mm
Pressure 1.0~1.6Mpa
Temperature UPVC: 0~60°C
CPVC: 0~90°C
Connection Flange, Thread, Union
Structure Integrated, 3 way L type, 3 way T type
Body Material UPVC, CPVC, PP
Ball Material UPVC, CPVC, PP
Sealing Material PTFE
Medium PVC food industry chemical solvent compatible
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
