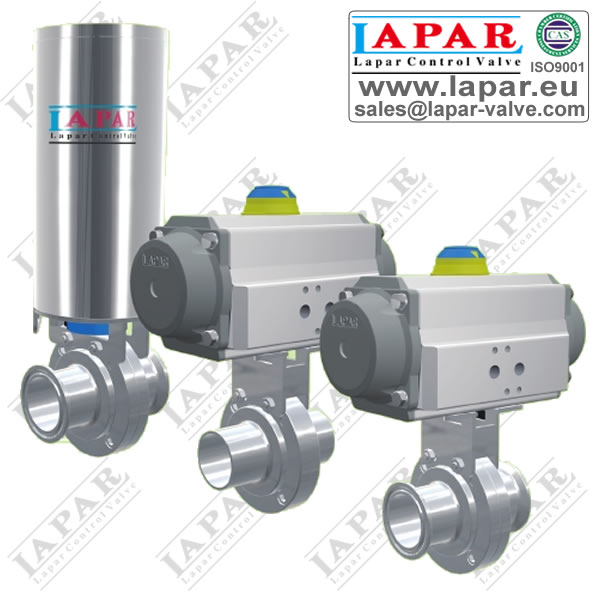

LPC12 Sanitary Butterfly Valve

LPC12 Sanitary Butterfly Valve

Sanitary Butterfly Valve

LPC12 Sanitary Butterfly Valve PDF catalogues

Design Feature

  1. Pore size consistent with the pipeline, no precipitate
  2. 316L material suitable for Sanitary conditions
  3. Flow channel wall 240Grit polishing, to ensure smooth flow channel
  4. No dead, easy to clean


Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 50~100mm
Pressure 1.0~1.6Mpa
Temperature Working Temperature: -20℃~120℃
Sterilization Temperature: 150℃(Max 20Min)
Connection Clamp, Weld
Structure A Type
Metal material Contact Product Part: 304/316L(14307/1.4404) Forged
No-contact Product Part: 304/316L(1.4301)
Provide EN 10204.3.1B certificate
Sealing Material Standard: PTFE
Option: FPM, SI
All Seal material coply with FDA 177.2600
Surface Treatment Internal Surface: R≤0.8um
External Surface: R≤1.6um
Medium Food, Beverages, Cosmetic, Wine, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
