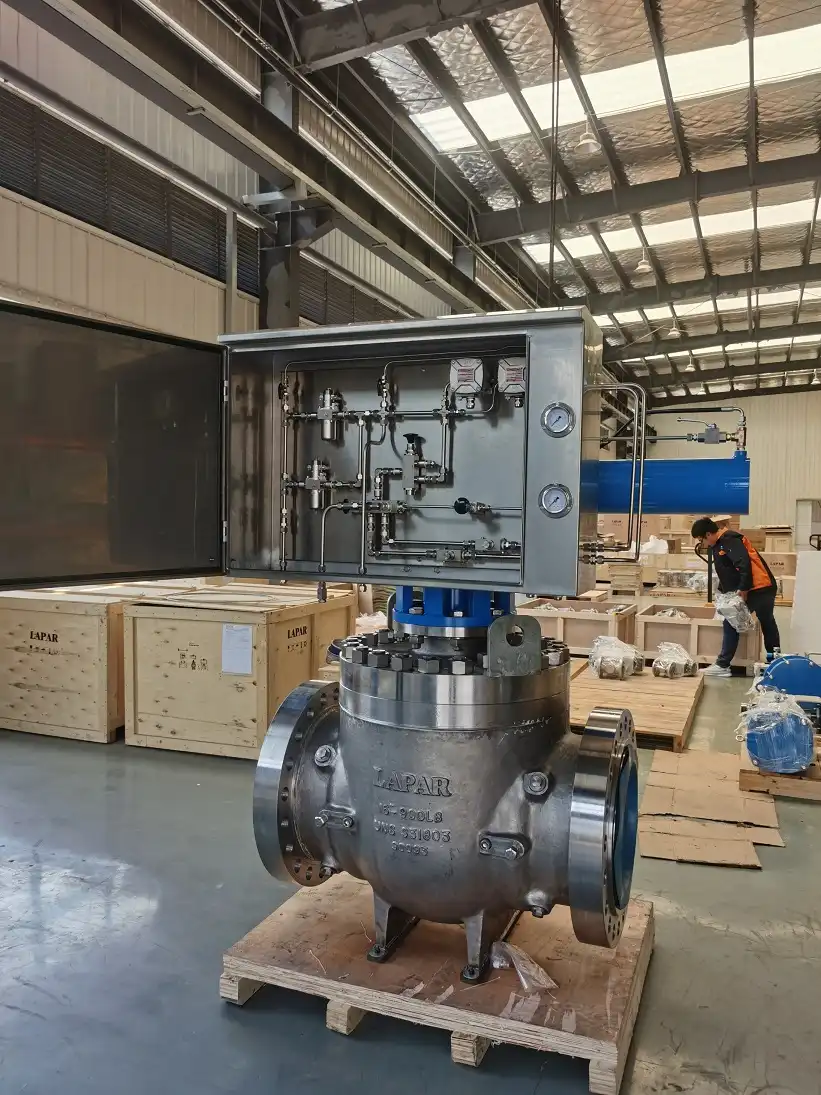

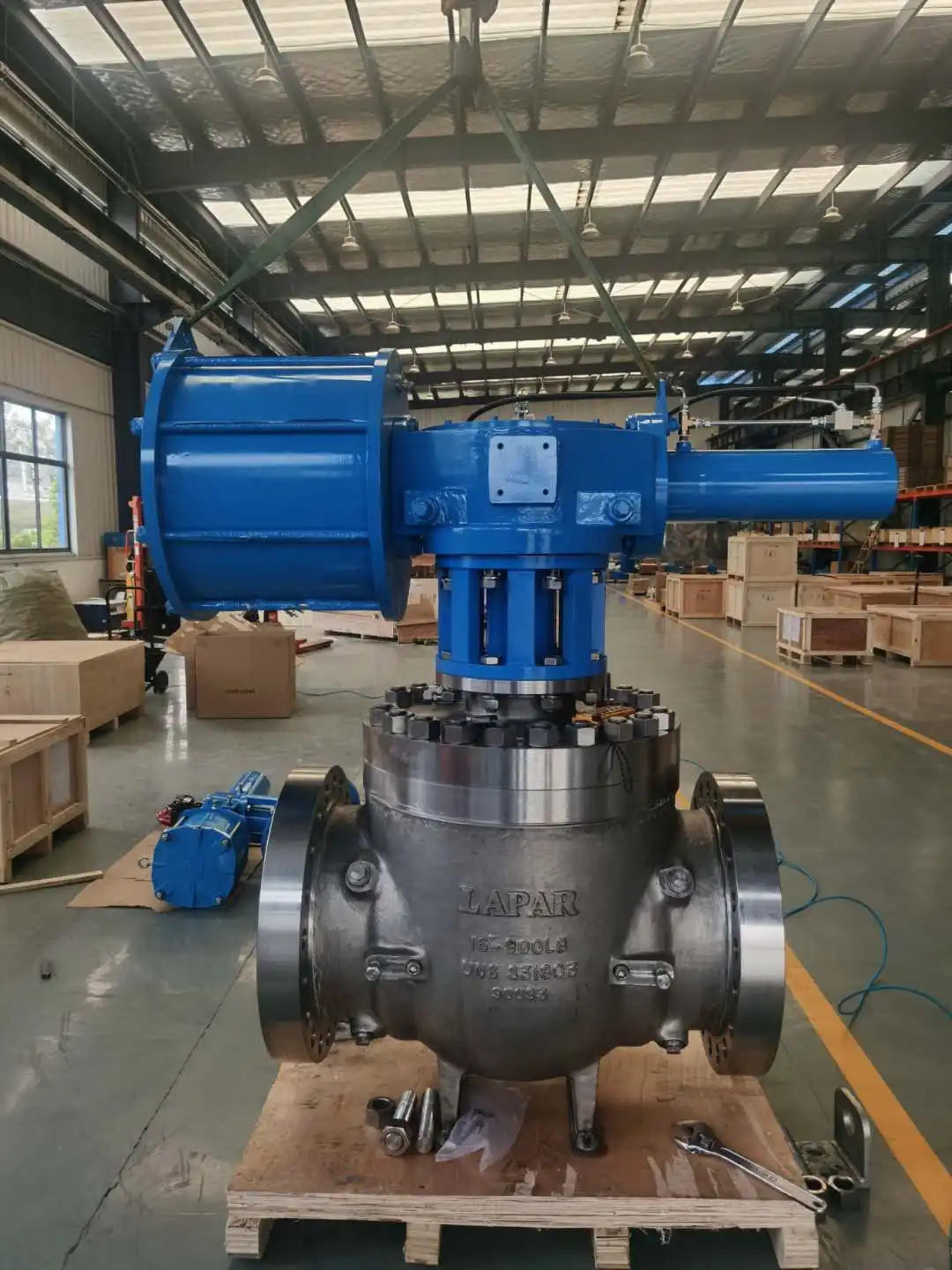

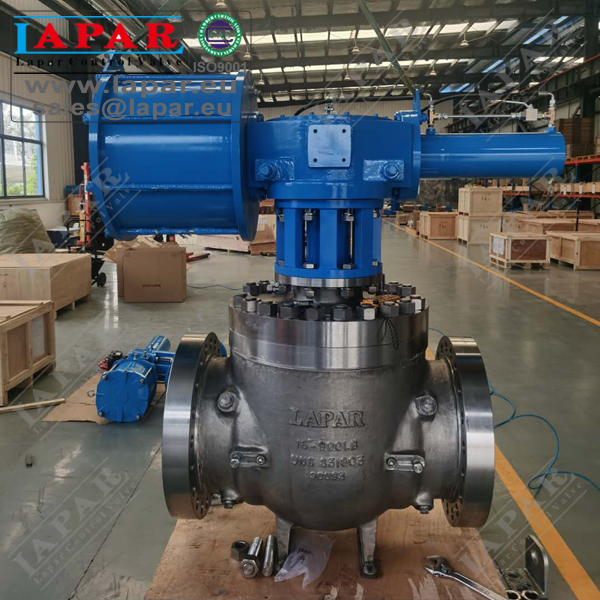

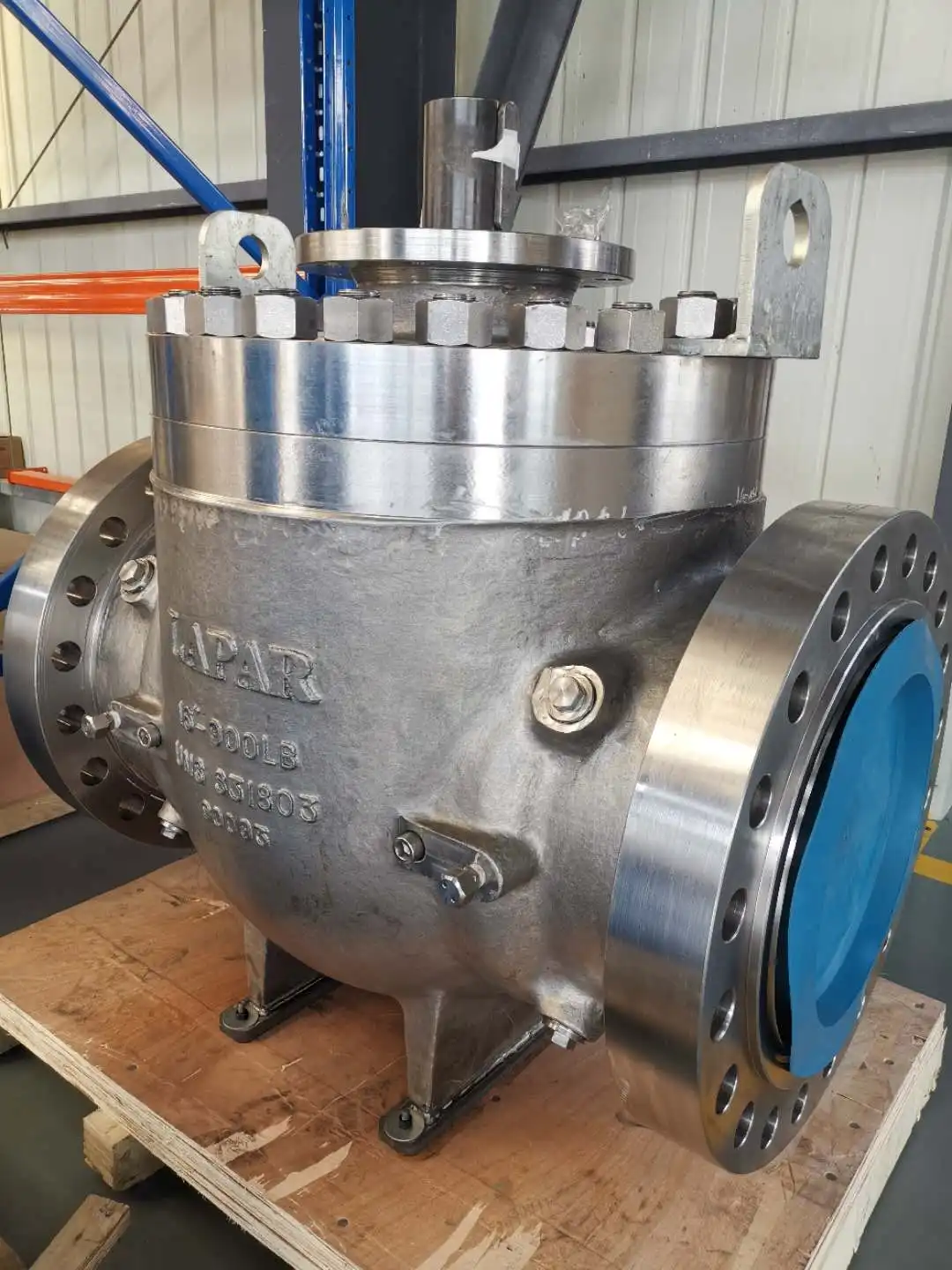

API 6D Top Entry Ball Valve

API 6D Top Entry Ball Valve

API 6D Top Entry Ball Valve, Soft Seat API Ball Valves

API 6D Top Entry Ball Valve PDF catalogues

Design Feature

  1. API 6D standard
  2. Double block and bleed (DBB)
  3. Low operating torque
  4. Emergency sealing device for 6" and larger
  5. Sealant injection device
  6. Reliable seat sealing structure
  7. Single Sealing - Automaitic pressure relief in meddle cavity of valve
  8. Double sealing - Double piston
  9. Special structure of automatic - Presure relief towards upper stream
  10. Blow-out proof steam
  11. Corrosion resistance and sulfide stress resistance
  12. Extension stem
  13. NACE MR-01-75

Parameter

ActuatorElectric, Pneumatic, Electro-hydralic, Manual
ControlOn-off, Modulating, Inteligent
DN2"~36"
PressureANSI CL150~CL2500
TemperatureNYLON, DEVLON: <80°C
PTFE: <150°C
PEEK, PPL: <250°C
ConnectionFlange, Weld, Thread
Structure2-pieces or 3-pieces Type
Body MaterialSS316L, SS316, SS304, SS304L, WCB, CE3MN, etc
Ball MaterialSS316L, SS316, SS304L, CE3MN, etc
Sealing MaterialNylon, Devlon, PTFE, PEEK
MediumGas, Water and Oil, etc
OptionLimit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
