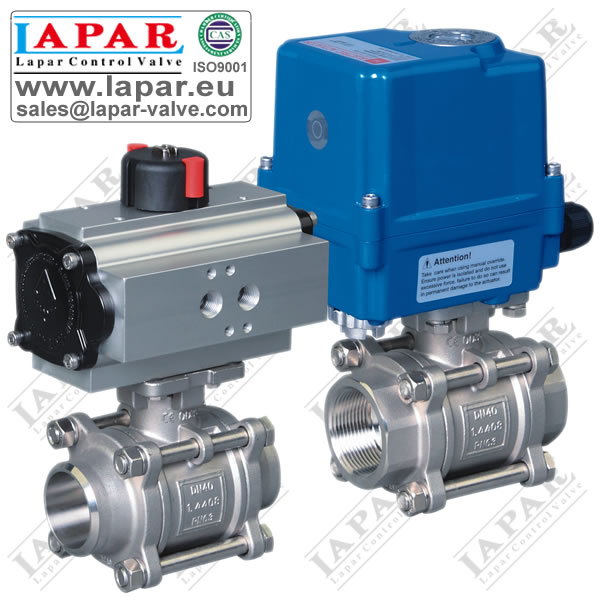

LPA12 Threaded Ball Valve

LPA12 Threaded Ball Valve

Threaded Ball Valve, 3-Piece Ball Valves, Thread type Ball Valves

LPA12 Threaded Ball Valve PDF catalogues

Design Feature

  1. Lost-wax precision casting
  2. Fire Safe design approved
  3. Built-in ISO5211 direct mounting pad for easy automation
  4. Anti-static devices for ball-stem-body
  5. Blow-out proof stem
  6. TA-LUFT design approved
  7. A variety of thread standards approved


  1. Design: ASME B16.34, API608
  2. Pipe Thread: ASME B1.20.1, BS21, DIN 299/259, ISO 7/1, ISO 228/1, JIS B 0203
  3. Inspection & Testing: API 598 EN 12266


Actuator Electric, Pneumatic, Handwheel, Handle
Control On-off, Modulating, Inteligent
DN 8~100mm
Pressure 1.6~6.3Mpa
Temperature PTFE, TFM1600: -29~178°C
EK: -29~250°C
Connection Thread
Structure Three-piece
Body Material SS316L, SS316, SS304, SS304L, WCB
Ball Material SS316L, SS316, SS304, SS304L
Sealing Material PTFE, TFM1600, EK
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
