LPH11 Single Seat Control Valve

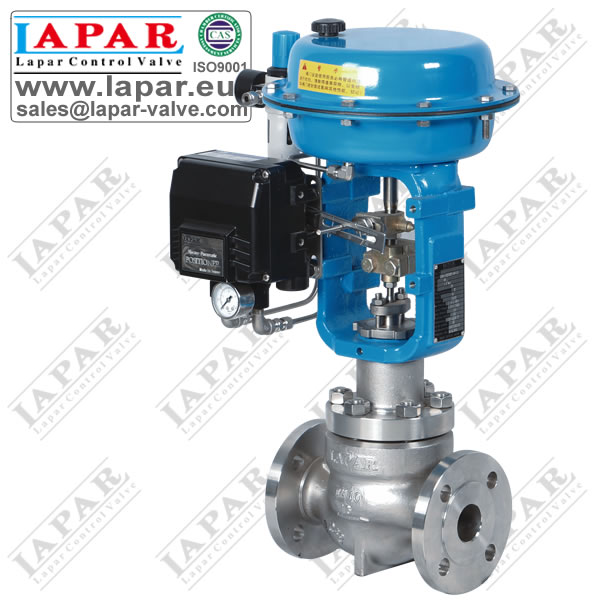

LPH11 Single Seat Control Valve

LPH11 Single Seat Control Valve with Pneumatic Diaphragm or Electric Actautor

LPH11 Diaphragm / Piston Single Seat Control Valve PDF catalogues

Feature

  1. Compact structure, fewer parts, light weight
  2. Wiring is simple, easy to operate
  3. Adjusted performance, small pressure loss, flow ability
  4. Able to apply a small amount of a certain viscosity and fiber medium

Parameter

<tr">Flow characteristics<td">Straight line, Equal percentage<td">Input signal<td">Body & Cap Material

Actuator Pneumatic, Pneumatic diaphragm, Electric
Control On-off, Modulating, Inteligent
DN 20~400mm
Pressure PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K
Temperature Std: -20~200°C, -40~250°C, -60~250°C
Cooling type: -40~450°C, -60~450°C
Ambient temperature -20~55°C
Inherent rangeability 50:1
Gas supply 0.14~0.3Mpa
4~20MA, 1~5V
Output signal 4~20MA, 1~5V
Connection Flange
Structure Standard Type, Bellows Seal Type, Cooling Type
WCB, WCC, WC6, CF8, CF8M, CF3, CF3M, etc
Stem Material 304, 316, 316L 17~4PH
Spool Material 304, 316, 316L, 17~4H, Surfacing Stellite
Packing Material PTFE, RTFE, Flexible graphite
Medium Gas, Water and Oil, etc
Optionial Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
Remark Commissioning has been completed in the factory
connected to the gas source and the input signal can be used

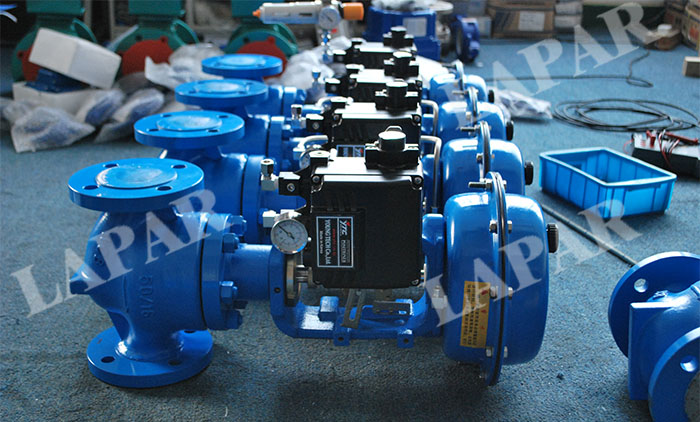

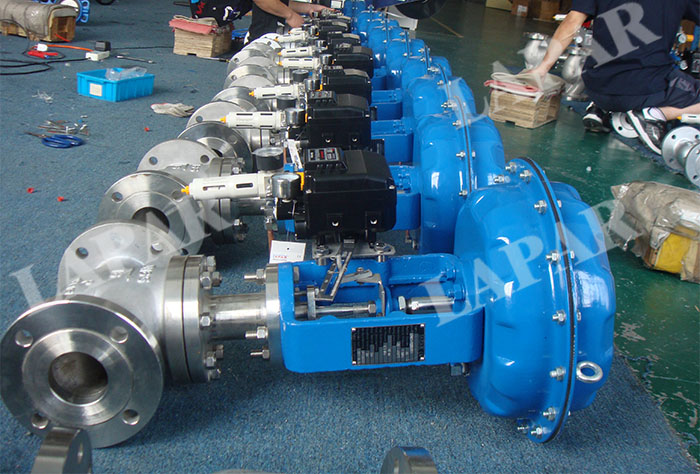

Pneumatic Diaphragm Single Seat Control Valve

LPH11 Pneumatic Diaphragm / Piston Single Seat Control ValveLPH11 Pneumatic Diaphragm / Piston Single Seat Control ValveLPH11 Pneumatic Diaphragm / Piston Single Seat Control ValveLPH11 Pneumatic Diaphragm / Piston Single Seat Control Valve

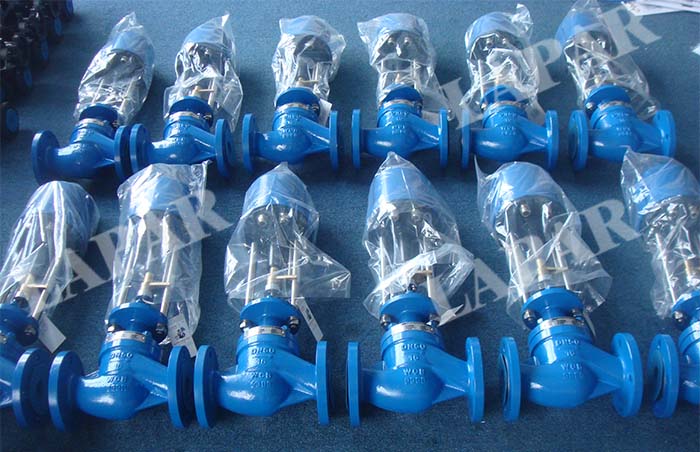

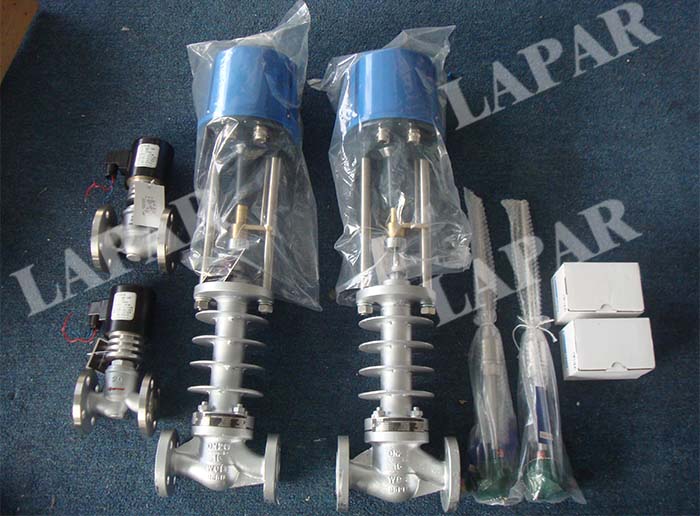

Electric Single Seat Control Valve

LPG11 Electric Single Seat Control ValveLPG11 Single Seat Electric Control Valve
