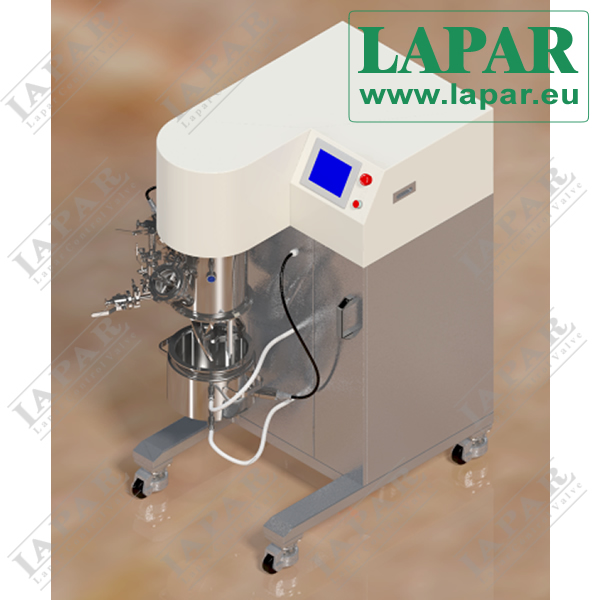

Planetary Mixer

Planetary Mixer mixings a big quantity of solid (powder body) and a small amount of fluid effectively. Shoorten the time in mixing or dilution process.

Features

1. This machine can works individually to handle all media from low viscosity to high viscosity, it also can reduce the loss in replacing the slurry container, easy for cleaning, save costs.
2. Two mixing paddles and one disc-shaped dispersion paddle to constitute a spiral shape and as a complement to each other, it works on any angle and any space, to ake sure the slurry can be sufficiently dispersed, mixing and kneading.
3. Helical mixing paddle works up and down, and cut the medium while working, this works will reduce the mechanical load.
4. This machine can handle up to a viscosity of about 1000PaS (1000,000 CP) medium.
5. This machine can be designed for the mixing, kneading in a vacuum reduced pressure state, such as boiling temperature, deaeration, the degree of dehydration.
6. Due to the inner surface of the mixing container made of precision machining, so using an extruder plate nesting can automatically transfer to the next section.
7. Fully automated operation, saving labor.

Applications

1. Chemical industry: Paper coating agents, Abrasives, Sealing materials.
2. Pharmaceutical industry: Ointments, Creams, Damp cloth.
3. Makeup Industry: Eyelash dye, Foundation cream, Moisturizer, Beauty mask.
4. Daily chemical industry: Toothpaste.
5. Energy Industry: Lithium batteries, Nickel cadmium batteries, Fuel cells, EV.
6. Automotive industry: EV (Lib battery), Capacitors.
7. Electronics industry: Magnetic materials, Insulation materials.
8. Electrical Industry: PDP related tackifier, Metal paste, Lithium batteries, Nickel cadmium batteries

Standard Parameters

Can be designed for explosion-proof, according to the use and treatment, electrical power may be done accordingly.

Model	Capacity (L)	Motor Power (KW)
		Planetary (KW)	Dispersed (KW)
PM-3S-5	5	1.1	0.75
PM-3S-20	20	1.5	2.2
PM-3S-50	50	4.0	4.0
PM-3S-125	125	5.5	5.5
PM-3S-250	250	7.5	7.5
PM-3S-500	500	15	15
PM-3S-800	800	22	18.5
PM-3S-1250	1250	30	22
PM-3S-1500	1500	37	30
PM-3S-2000	2000	45	37
PM-3S-2500	2500	55	45
