Economical Electric Actuators

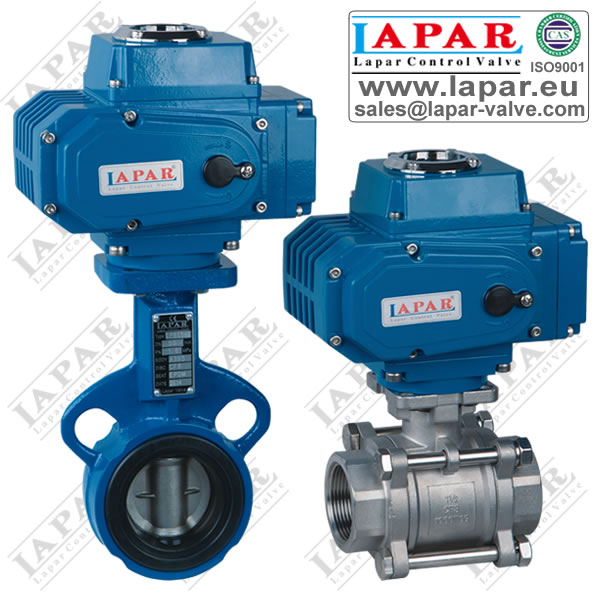

LU Series electric actuator is Lapar company new economical electric actuator for ball valves, butterfly valves and other transition back to driving; appearance of fine small, light weight, precise adjustment is the series features; high technology, reliable performance customers on selected products; variety of specifications to meet customer's various torque valve configuration.

Feature

1. Complete function: Customize intelligent, proportional and switch-type valves of various signal output and voltages
2. Compact size: Size and weight equal to only 35-40% of congeneric products
3. High standard protection: Protection standard of IP67 for outdoor operation
4. Reliable performance: Lengthen service life of easily damaged parts such as bearing and electrical components
5. Precise and wear resistant: Turbine output shaft is forged by integrated special copper alloy, high in strength and great in wear resistance Little
6. Return difference: Integrated turbine output shaft avoids clearance of key joint and ensures precision
7. Safety assurance: Grade F insulation motor passed high-voltage insulation test assures safety
8. Integrated: Valve body carries intelligent control module, no need of external connection with other accessories
9. Simple mating: Adopted single-phase source simplifies circuit external connection
10. Convenient to use: Installation at any angle, no need of secondary maintenance
11. Protective device: Double limit with over temperature protection
12. Optional speed: 5S, 10S, 15S, 30S, 60S
13. Optional explosion-proof type: Explosion series:  Ex d IIB T4

Parameter

Size	Torque	Weight	Voltage	Travel time	Motor power	Rated current	Protection standard
5	50Nm	2.4kg	DC24V AC110V AC220V AC380V	10S 30S	20W 10W	2.00A 0.48A 0.24A 0.15A	IP67
10	100Nm	4.2kg	DC24V AC110V AC220V AC380V	10S 30S	40W 23W	2.40A 0.64A 0.32A 0.19A	IP67
20	200Nm	7.2kg	DC24V AC110V AC220V AC380V	10S 30S	40W	8.00A 0.90A 0.48A 0.25A	IP67
40	400Nm	7.2kg	DC24V AC110V AC220V AC380V	10S 30S	90W	7.00A 2.00A 0.92A 0.45A	IP67
60	600Nm	8.0kg	DC24V AC110V AC220V AC380V	10S 30S	90W	7.00A 2.00A 0.92A 0.45A	IP67
100	1000Nm	11.5kg	AC110V AC220V AC380V	50S	100W	2.20A 1.20A 0.48A	IP67
200	2000Nm	12.1kg	AC110V AC220V AC380V	100S	100W	2.20A 1.20A 0.48A	IP67
