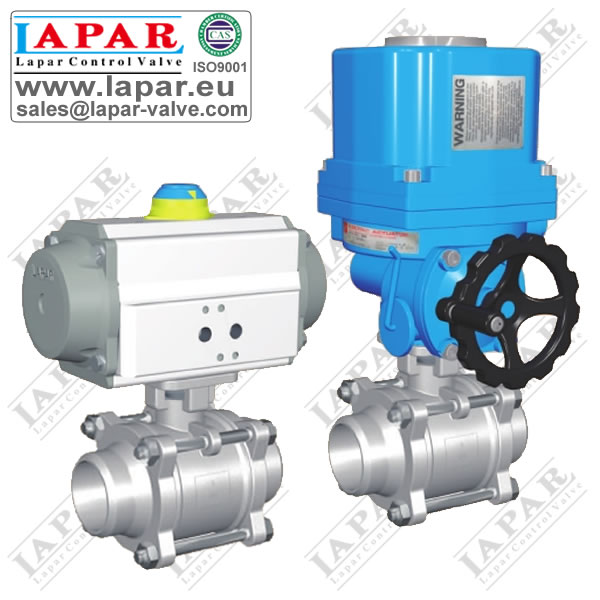

Welded Ball Valve, Welding Ball Valves
Design Feature
- Lost-wax precision casting
- Fire Safe design approved
- Built-in ISO5211 direct mounting pad for easy automation
- Anti-static devices for ball-stem-body
- Blow-out proof stem
- Pressure balance hole in ball slot
- TA-LUFT design approved
Standard
- Design: ASME B16.35, API 608
- Pipe Thread: ASME B1.20.1, BS21, DIN 299/259, ISO 7/1, ISO 228/1, JIS B 0203
- Inspection & Testing: API 598 EN 12266
Parameter
| Actuator | Electric, Pneumatic, Handwheel, Handle |
| Control | On-off, Modulating, Inteligent |
| DN | 8~100mm |
| Pressure | 1.6~6.3Mpa |
| Temperature | PTFE, TFM1600: -29~178°C EK: -29~250°C |
| Connection | Welding |
| Structure | Three-piece |
| Body Material | SS316L, SS316, SS304, SS304L, WCB |
| Ball Material | SS316L, SS316, SS304, SS304L |
| Sealing Material | PTFE, TFM1600, EK |
| Medium | Gas, Water and Oil, etc |
| Option | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |

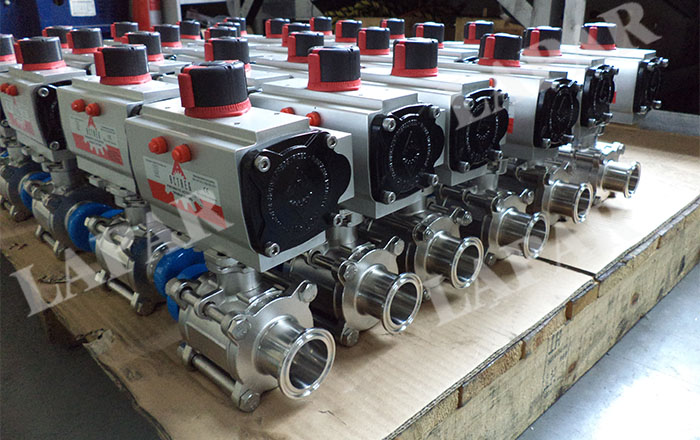

Pneumatic Welded Ball Valve
