LPB13 High Performance Double Eccentric Butterfly Valve

High Performance Butterfly Valves, Double Eccentric Butterfly Valves

High Performance Double Eccentric Butterfly Valve PDF catalogues download - Lapar Valve

Design Feature

  1. Life of up to one million times
  2. Good sealing performance, easy to replace
  3. Valve pressure rating 740 psi, Maximum operating temperature 400°F at 100 psi, Lug style, Glass reinforced PTFE seats, Blowout proof stem, Stainless steel disc and stem, Integrally cast disc stop, Dual offset design, Direct mount actuation, Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  4. MSS SP-68 (design) 100% production tested, MSS SP-25 (markings), API 609 seat pressure/temperature ratings/blow-out proof stem, ASME/ANSI B16.34A, body pressure/temperature ratings, ASME/ANSI B16.5 flange dimensions, ISO 5211 EN 12116 actuator mounting top works, ANSI Class 300

Parameter

ActuatorElectric, Pneumatic, Turbine, Handle
ControlOn-off, Modulating, Inteligent
DN50~1200mm
Pressure150~300Lbs
TemperaturePTFE: -29~150°C
Graphite: -40~425°C
ConnectionFlange, Wafer, Lug
StructureDouble eccentric
Body MaterialSS316, SS304, WCB
Disc MaterialSS316, SS304, WCB
Seat MaterialPTFE, Graphite
MediumGas, Water, Oil (High temperature applications)
OptionLimit Switch, Positioner, Solenoid Valve, Pressure-relief Valve

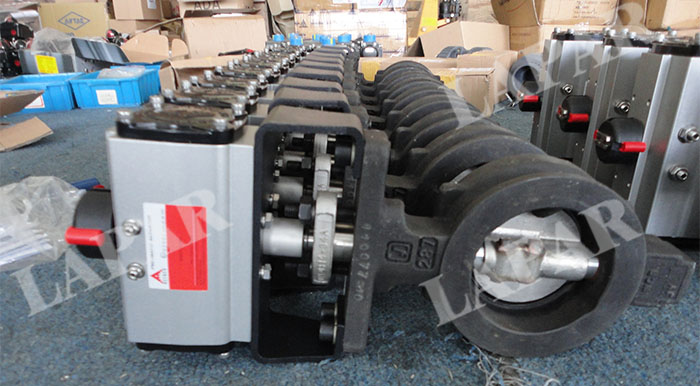

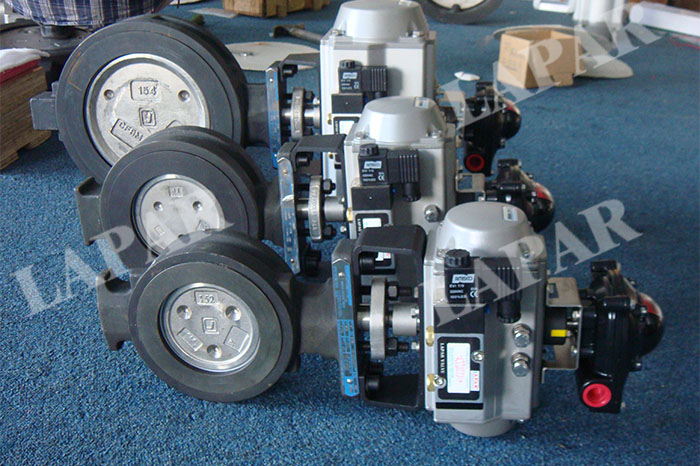

LPB13 High Performance Double Eccentric Butterfly Valve

LPB13 High Performance Double Eccentric Butterfly ValveLPB13 High Performance Double Eccentric Butterfly Valve
