LPH31 Angle Type High-pressure Single-seat Control Valve

LPH31 Angle Type High-pressure Single-seat Control Valve

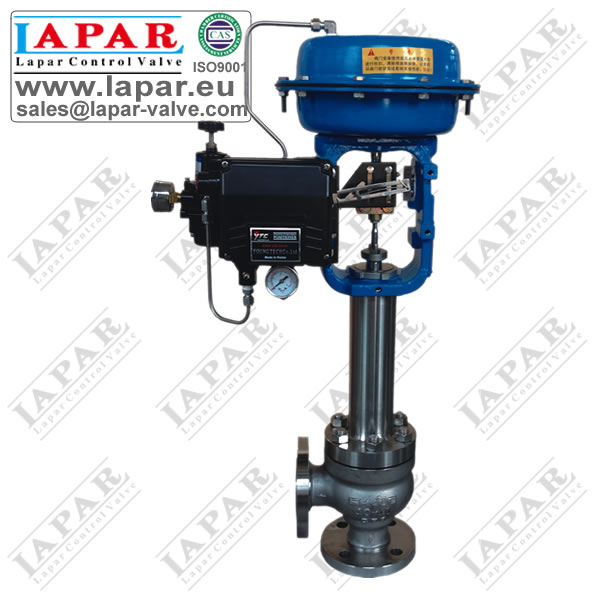

LPH31 Angle Type High-pressure Single-seat Control Valve with Pneumatic or Electric Actuator

Angle Type High-pressure Single-seat Control Valve PDF catalogues

LPH31 high-pressure single-seat Angle type control valve is a top-guide valve, with compact structure, small pressure drop loss, large flow, wide adjustable range. The plug guide area is big, and the vibration resistance ability is excellent.

The control valve leakage rate meets ANSI B16.104 standard.  The actuator is multi-spring diaphragm type actuator with compact structure and big output torque.

Size DN20~80 (3/4~3 inch)
Pressure Rating ANSI CL900~2500, JIS 63K
End Connection RF, RJ, SW, BW
Bonnet Plain or Extension
Flow Characteristics Equal percentage, Linear
Actuator Pneumatic, Electric
